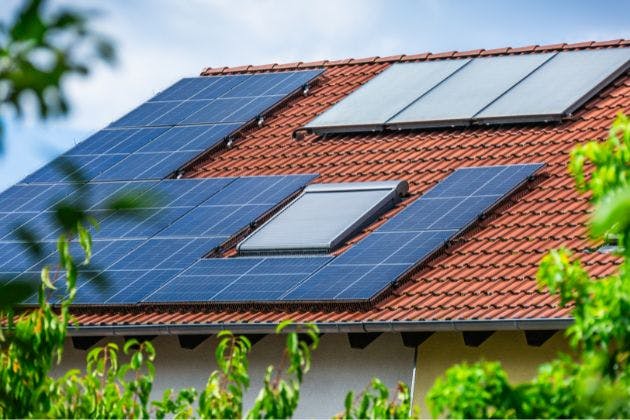

Solar Panel Shading: How to Spot Problems Early

Shading is one of the easiest ways to ruin the performance of an otherwise good solar PV system. Even a small shadow from a chimney, tree, or TV aerial can significantly reduce energy output, often more than homeowners realise. This is especially true for older string inverter systems, where shading on just one panel can drag down the performance of the entire string. Partial shading causes hotspots and reduces efficiency, meaning your system won’t generate as much electricity as it could on a sunny day.

Understanding how and when shading occurs is crucial to maintaining optimal solar performance and getting the best return on your investment.

What is solar shading?

Solar shading is when something blocks sunlight from reaching your solar panels. It might be a tree, a neighbouring roof, a dormer window, or even small items like vents and aerials.

When light is blocked, the shaded panel produces less power. In some systems, one weak panel can affect the whole string, so the overall output of the array drops more than you would think from the small patch of shade.

How shading changes through the day and year

The tricky part is that shading is rarely static. The sun moves across the sky during the day and sits at different heights in summer and winter. A clear roof at midday in July might be heavily shaded at 3 pm in December.

Morning sun often highlights shading from east-side features like tall trees and neighbouring houses. Late afternoon can bring shadows from chimneys, dormers and higher buildings to the west. Winter sun is lower, so longer shadows reach further across roofs than in summer.

• Morning: look for shadows from nearby houses, tall fences and trees to the east.

• Midday: check for smaller but sharper shadows from chimneys, dormers and aerials.

• Late afternoon: watch for long shadows from trees, higher roofs and extensions to the west.

Over the years, shading can also increase as trees grow, new extensions appear or neighbours add loft conversions and dormers. A good installer will try to plan for these changes, not just what they see on the day.

Impact of partial shading on solar PV performance

With a traditional string inverter, several panels are wired together in a chain, or “string”. The string then behaves a bit like a hosepipe: one kink restricts the flow for the whole hose. In the same way, one shaded panel can pull down the performance of the entire string.

This does not mean shaded systems never work, but it does mean design is crucial. Badly placed chimneys or vent pipes that cast regular shadows can cause repeated drops in output every day. Over a year, that adds up to a noticeable loss of generation.

In some cases a small layout change, such as moving a couple of panels to the opposite roof, can dramatically reduce these losses. That is exactly what a good survey and string design aims to achieve.

How optimisers and microinverters can help

Modern systems can reduce the effect of shading with smarter electronics. Two common approaches are power optimisers and microinverters.

Power optimisers sit on the back of each panel (or pair of panels) and let each panel work more independently. Instead of the weakest panel setting the pace for the whole string, optimisers help keep output higher when only one or two panels are shaded.

Microinverters go a step further by turning the DC electricity from each panel into AC directly on the roof. Each panel becomes its own mini system, so shading on one has far less effect on the others. These solutions can be especially helpful on complex roofs with chimneys, dormers or different orientations.

What an installer checks during a shading survey

A proper site survey for a home in Abingdon, Carterton, Witney or nearby will look far beyond just roof size. Shading assessment is a key part of the visit.

Shade analysis tools

Many installers use a mix of on-site tools and satellite imagery. They may use a handheld shade meter, a smartphone tool or specialist software to model how nearby objects cast shadows through the year.

This helps identify problem times of day, such as long winter shadows from big trees, or sharp summer shadows from chimneys at midday. The installer can then design the system to avoid the worst-affected roof areas.

Roof layout and string design

Once shading hotspots are known, the installer will choose where panels should go and how they are wired together. They may place panels with similar shading patterns on the same string to minimise losses.

On more complicated roofs, they might recommend optimisers or microinverters. The aim is to balance maximum generation with sensible costs, while avoiding designs where one or two shaded panels hold back everything else.

Common shading scenarios in Oxfordshire homes

Local housing styles in and around Oxfordshire create some very typical shading issues. Being aware of them can help you ask the right questions at survey stage.

In Witney and Carterton, mature trees in older estates and around green spaces can throw long shadows across south-facing roofs in winter afternoons. Newer developments may have closely spaced houses, where one ridge line shades the next for parts of the day.

In Abingdon and many Oxfordshire towns with terraces and semi-detached rows, rear extensions and loft dormers often block low-angle sun. You can see this most clearly in autumn and winter, when the sun tracks lower and shadows stretch further across the rows.

Homeowner shading checklist

You do not need to climb on the roof to do a basic shading review. In fact, do not attempt any roof access yourself; it is unsafe without the right equipment and training.

Instead, use this simple checklist from ground level or an upstairs window to gather information before speaking to an installer:

• Take clear photos of your roof at three times: morning, around midday and late afternoon, noting where shadows fall.

• Write down any tall trees nearby, especially to the south, and note if you already plan to trim or remove them.

• Look for chimneys, dormers, flues, TV aerials, satellite dishes and roof vents that might cast narrow but strong shadows.

• Check neighbouring roofs for higher ridges or extensions that might block the sun at certain times.

• Note any planned works, such as loft conversions or extensions, that could affect shading in future.

Share this information with your installer along with your address so they can cross-check with mapping tools and prepare for a detailed survey.

Red flags that mean you should book a survey

Some situations really do call for a professional eye. If you spot any of the following, a proper shading survey is strongly recommended before you commit to an installation:

Large trees to the south or south-west of your roof, especially if they are taller than the ridge line, can drastically cut winter generation. Rows of taller houses or three-storey townhouses immediately next to your property may also cause heavy shade at key times.

Complex roofs with multiple dormers, valleys, or several small faces at different angles are more prone to partial shading. Previous solar on a neighbour’s similar house that underperforms can be another warning sign that design needs extra care.

Next steps for Oxfordshire homeowners

If you are in Abingdon, Carterton, Witney or the surrounding areas and are unsure how shading might affect your roof, the safest next step is a professional survey. A good installer will assess shading, design sensible strings and explain if optimisers or microinverters are worth it in your case.

You can learn more about solar installations and request a survey on the solar installation service page, or see examples of local projects. If you are thinking ahead about using more of your own solar power, have a look at battery storage options as well.

For friendly, expert advice and a shading-aware design for your home, contact R Harris Electrical Services Ltd on 07929825745 to discuss a tailored solar PV survey.
